Mini 2D Cmos Barcode Scanner Parts Cmosscanning Module 32 Bit Colour Depth

Product Categories
Shenzhen Masung Technology Co. Ltd
Contact Now

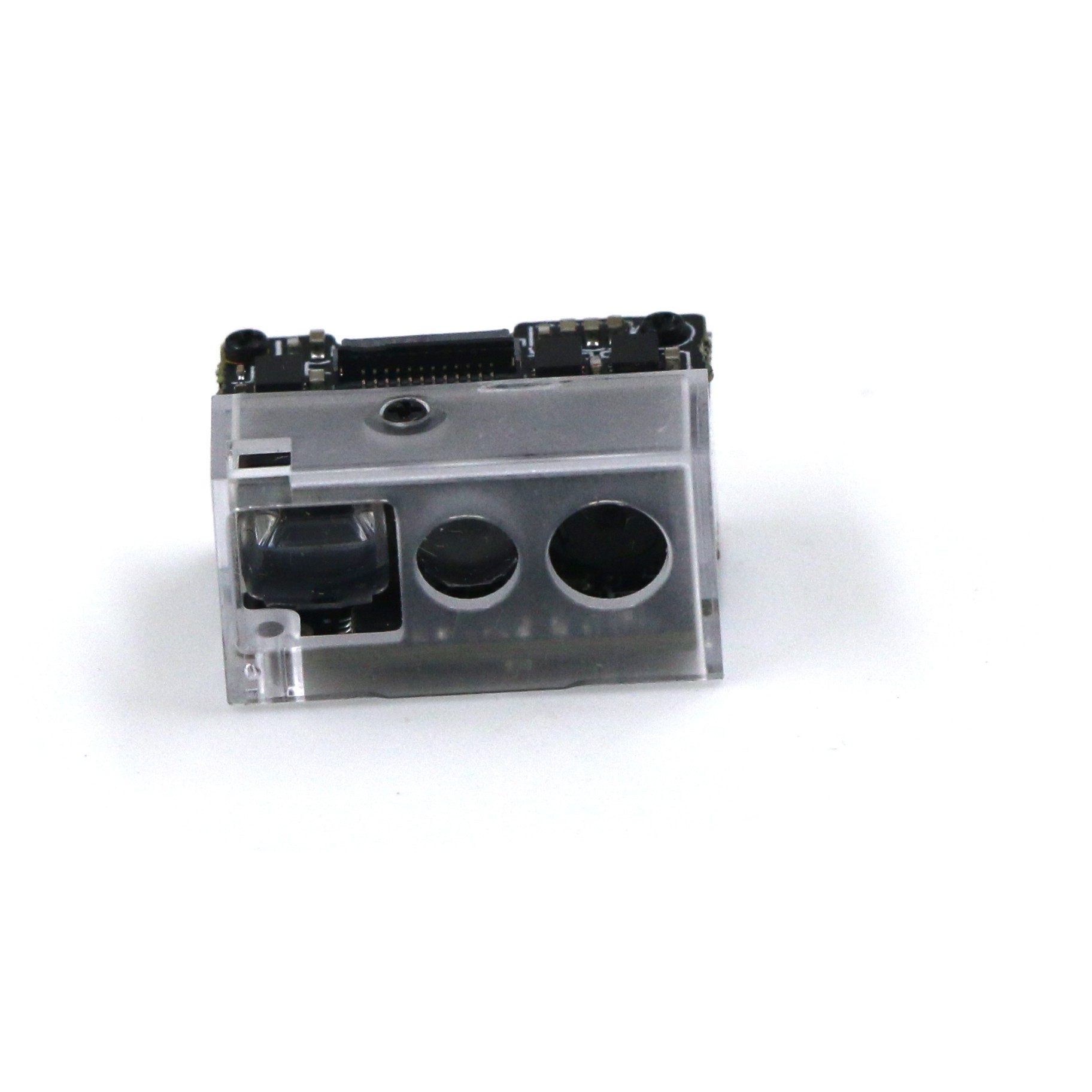

Mini 2D Cmos Barcode Scanner Parts Cmosscanning Module 32 Bit Colour Depth

  • 1
  • 2

Brand Name : MASUNG

Model Number : MS-2103

Certification : CE FCC ROHS

Place of Origin : China

MOQ : 1 unit

Price : 1-45USD/1-1000piece

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram

Supply Ability : 5000 units/monthly

Delivery Time : 3-8 days

Packaging Details : Carton and foam material for Mini Embedded QR code Barcode

Color : Black

Model : MS-2103

Interface type : USB,COM,RS232

Scan speed : 300 Scans/sec

Colour depth : 32 Bit

Scan element type : CMOS

Contact Now

Mini 2D CMOS Barcode Scanner Parts /Scanning Module/ Engine Scanner



Quick Details
  • Products Status:
  • Stock
  • Type:
  • Barcode Scanner
  • Scan Element Type:
  • CMOS
  • Colour Depth:
  • 32 Bit
  • Interface Type:
  • USB, TTL
  • Max Paper Size:
  • a4
  • Optical Resolution:
  • 640 pixels (H)x 480 pixels (V)
  • Scan Speed:
  • 200/s
  • Brand Name:
  • Masung
  • Place of Origin:
  • Guangdong, China
  • Warranty(Year):
  • 3-YEAR
  • After-sales Service:
  • Call Center and on-line Technical Support
  • Product name:
  • 2D Barcode Scanning Module
  • Dimensions:
  • 11.5mm x14.6mm x 21.2mm
  • Weight:
  • 4.5g
  • Voltage:
  • 3.3-5 VDC
  • Interfaces Supported:
  • USB, TTL(Optional)
Supply Ability
  • Supply Ability:
  • 10000 Piece/Pieces per Month
Packaging & Delivery
  • Port
  • Shenzhen
  • Lead Time :
  • Quantity(Sets) 1 - 500 >500
    Est. Time(days) 10 To be negotiated

Product Description
Mini 2D Cmos Barcode Scanner Parts Cmosscanning Module 32 Bit Colour Depth



2D Barcode Scanning Module
Specification
Model:
MS-2103
Physical Characteristics
Dimensions:
11.5mm x14.6mm x 21.2mm
Weight:
4.5g
Voltage:
3.3-5 VDC
Starting Current:
164mA
Stand-by Current:
107mA
Work Current:
296.4mA
Performance Characteristics
Image (Pixels):
640 pixels (H)x 480 pixels (V)
Light Source:
(Aimer) Green color LED; (Illumination) White color LED
Field of View:
36°(Horizontal),25°(Vertical)
Roll / Pitch / Yaw:
360°, ±65° , ±65°
Print Contrast:
20% minimum reflective difference
Interfaces Supported:
USB, TTL(Optional)
Motion Tolerance s:
>0.4m/s
Symbology Decode Capability
1-D:
Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc.
2-D:
PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC39,DataMatrix, etc.
User Environment
Operating Temperature:
-20°C to 60°C
Storage Temperature:
-30°C to 70°C
Humidity:
5% to 95% relative humidity,non-condensing
Shock Specifications:
2000 G, 0.7 ms, half sinus, 3 axes
Ambient Light Immunity:
0-100,000 Lux.
Decode Ranges
Code39(4mil)
6-13cm
Code39(5mil)
5-15cm
Code39(13mil)

6-13cm

Production Details

Packing&Shipping

Company Profile


1.Q:Are you a manufacturer or trading reseller?
Masung: We are real manufacturer which factory locates in Li Jin Cheng industrial park,Shenzhen city, PR China. We own experienced engineers team, complete quality control system, efficient production equipments and highly skilled staffs.

2.Q:Can you offer OEM/ODM service for our order?
Masung: We can support different aspects customization service including hardware/mechanical design. But there is a MOQ request.

3.Q:What is your MOQ?
Masung: There is no MOQ limit, Sample is availale.


4.Q:What is your payment way?
Masung: We accept TT, Western Union and LC.



5.Q:Can I pay on alibaba?
Yes, it would increase our credit points if more customers pay through alibaba platform.
To customer
100% Product quality protection
100% On-time shipment protection
100% Payment protection

6.Q:How long is your delivery time?
Masung: Generally it is 2-3 weeks, sample is 2-3 days. It depends on order quantity.



7.Q: Which way to deliver the goods?
DHL, Fedex, EMS, China Post, Express and so on. We also support the goods to ur ship agent. We take the most convenient one for u.



8.Q:What the after sale service?
Each products will be tested strictly before delivery and our failure rate be limited to the range of 0.01%.
Our all products will provide 24 months warranty.
Enough stock spare parts for guarantee.
Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field.
