2 Inch USB Thermal Receipt Panel Mount Printers , LTPA245 Printer Head

Name: 2 Inch USB Thermal Receipt Panel Mount Printers LTPA245 Printer Head
Brand: MASUNG
Price: 1 USD

Buy cheap 2 Inch USB Thermal Receipt Panel Mount Printers , LTPA245 Printer Head product

Place of Origin : China

Brand Name : MASUNG

Certification : CE; ROSH

MOQ : 1

Packaging Details : Carton

Delivery Time : 5~8 days

Payment Terms : T/T/Paypal/Western union

Supply Ability : 3,000 units/monthly

Model Number : MS-601

Contact Now

2 Inch USB Thermal Receipt Panel Mount Printers , LTPA245 Printer Head

Quick details:

► Printer mechanism LTPA245
► Panel LED indication
► High speed 70 mm/s
► Built-in control board
► Bucket for big diameter paper roll
► Low power supply
► Ultra compact structure
► Low noise

Description:

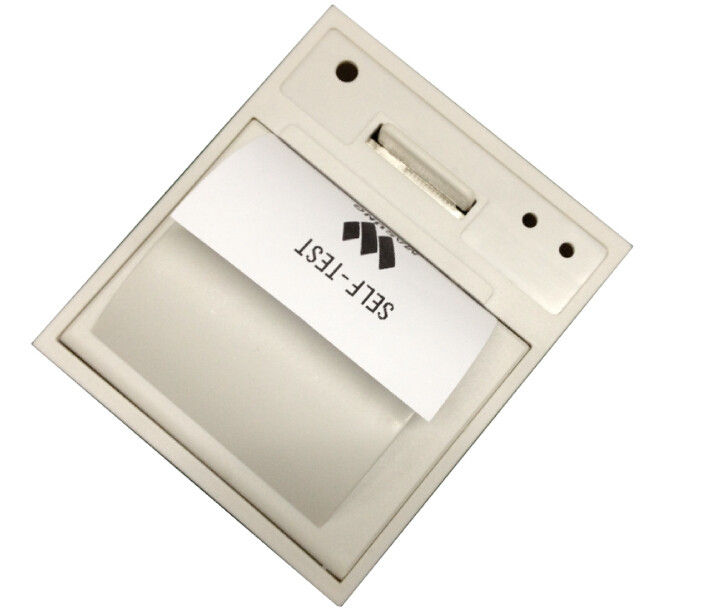

MS-601 belongs to 2 inches thermal receipt printer with front panel open structure. easy paper loading and maintenance. big roll bucket can contain diameter 40 mm roll. it is widely used for medical devices.

Specifications:

Mechanism
Printing method	Thermal dot line printing
Dots number	384 dots/line
Printing density	8 dots/line
Printing speed	Max 70 mm/s
Printing width	40 mm
Paper width	42.5±0.5 mm
Roll diameter	Max 46 mm
Working voltage	DC 4.2~8.5 V
Head sensor	thermistor
Paper sensor	Photo interrupter
Reliability	Mechanism life: over 50 km; Pulse numbers: 10,000,000,000 times
Working environment	Temperature:0~50℃ Humidity: 20~85% RH
Control board
Interface	TTL/RS-232/USB
Command set	ESC/POS
Firmware location	Flash memory
Buffer	4 K bytes
Supporting devices	Paper end sensor, paper near end sensor
Total weight	Approx 63 g
Panel dimension	88(L)76(W)42(H)

Accessories

cable

Application:

Panel printer, medical printer, self-service terminal, vehicle-mounted recorder, meters and measurement device,gas pumps and more

Competitive Advantage:

Low cost
Brand-name printer parts
Customization offer
Prompt delivery
Small order accepted
Buyer label offer
