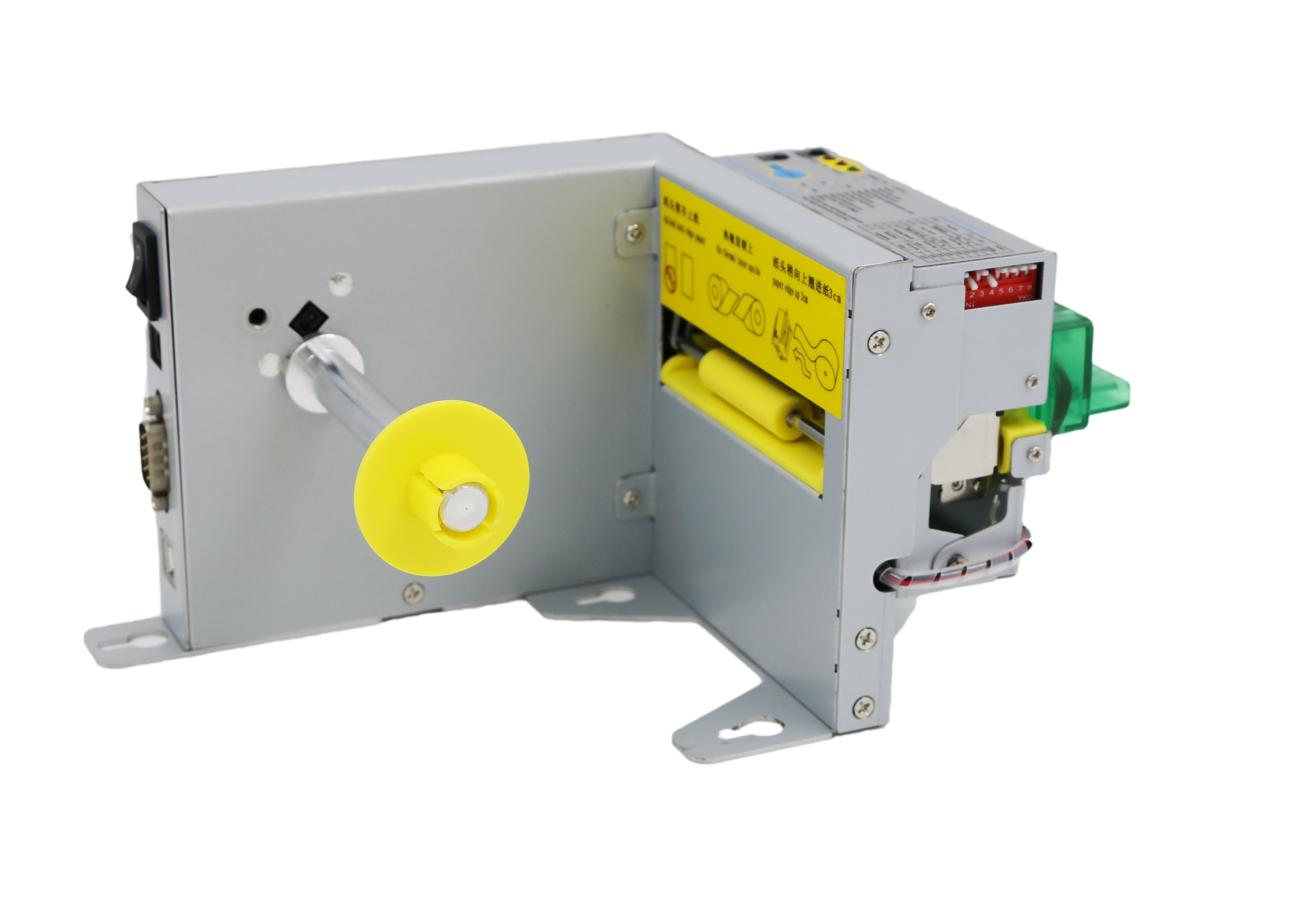

2D Barcode Thermal Receipt Printer With RS232 Linux SDK Speed 200mm

Name: 2D Barcode Thermal Receipt Printer With RS232 Linux SDK Speed 200mm
Brand: MASUNG
Price: 1 USD

Buy cheap 2D Barcode Thermal Receipt Printer With RS232 Linux SDK Speed 200mm product

Brand Name : MASUNG

Model Number : MS-D347-TH

Certification : CE; ROSH

Place of Origin : China

MOQ : 1

Price : USD1~200/piece

Payment Terms : T/T/Paypal/Western union

Supply Ability : 2,000 units/monthly

Delivery Time : 5~8 days

Packaging Details : cartons and foam materials

mechanism : CAPD347

Paper width : 80 mm

Printing width : 72 mm

Paper thickness : 54~78 um

Dimension (L*W*H) : 119.45*96.13*80.60mm

Weight : Approx 2.18 kg

Printing speed : 200mm

Contact Now

2D Barcode Printing Ticket Printer Mechanism With RS232 Linux SDK Printing Speed 200mm

Quick Details:
This product USES the brand printer CAPD347 mechanism, which is equipped with the DPI switch. You can set the data interface, the black label function and the baud rate. We offer different options for different devices and installation scenarios, and we offer a variety of accessories to meet your needs.
Description:
This product is widely used in various scenarios. The printing size of 80mm is flexible and convenient, and the size of standard format is convenient for installation, especially the use of international brand seiko inner core, guaranteeing the quality.

Specification:

mechanism:			CAPD347
Printing method			Thermal dot line printing
Dots/line			576 dots/line
Dot pitch			8 dot/mm
Paper width			80 mm
Printing width			72 mm
Paper thickness			54~78 um
Printing speed			170 mm/s
Paper feed direction			180° horizontal
Sensors	Head temperature		Thermistor
	Paper press shaft		Mechanical switch
	Paper end		Photo interrupter
Paper loading			Easy loading
Font size			ASCII:917;1224; Chinese: 24*24
Power supply		Logic circuit	4.75~5.25 V
		Motor	21.6~26.4 V
Dimension (LWH)			119.4596.1380.60mm
Weight			Approx 2.18 kg
Reliability			Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage temperature	-25℃~70℃
		Storage temperature	10~90% RH

Controlling board:
Interface	RS-232 /USB/Parallel
power supply	DC 24V/2.5A
Command set	ESC/POS
Barcode	supported
Firmware location	512KB Flash memory
Buffer	32 KB
SRAM	64KB (extra)
Driver	Parallel/USB driver
System	WindowsXP/Win7(32bits or 64 bits)/ Win8/Android/Linux OS
Accessories:	Sensors	paper near end sensor;
		paper jam sensor;
		dragging paper sensor;
	Paper holding unit
	Paper guide mouth
	Interface connector
	Power supply unit
	Cable

Why you choose us: cheaper prices, mature assembly line work, no threshold order quantity, stable product performance, first-class industrial level, professional internal parts source, personalized customized service, precise delivery time.
