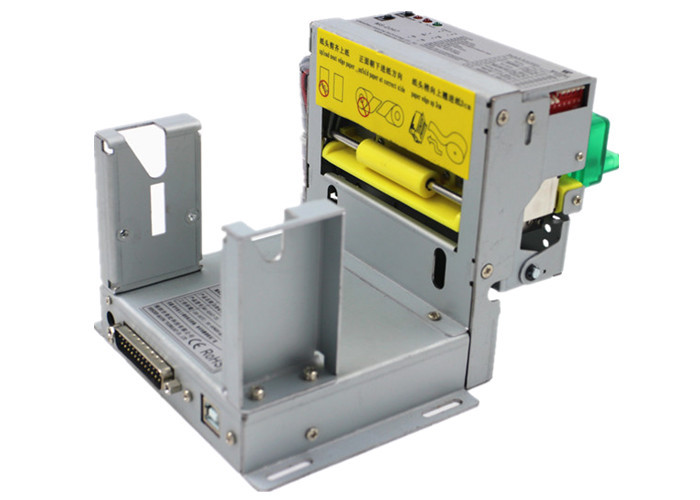

Small ESC / POS Lan Thermal Printer Module for Multimedia Kiosk CAPD347

Shenzhen Masung Technology Co. Ltd
Contact Now

Small ESC / POS Lan Thermal Printer Module for Multimedia Kiosk CAPD347

Place of Origin : China

Brand Name : MASUNG

Certification : CE; ROSH

Model Number : MS-D347-BE

MOQ : 1

Packaging Details : Cartons and foam materials

Delivery Time : 5~8 days

Payment Terms : T/T/Paypal/Western union

Supply Ability : 3,500 units/monthly

Price : USD1~200/Piece

Dots/line : 576 dots/line

Printing width : 72 mm

Printing speed : 200 mm/s

Driver : Parallel/USB driver

Command set : ESC/POS

Contact Now

Small ESC / POS Lan Thermal Printer Module for Multimedia Kiosk CAPD347​


Quick details:

  •  Barcodes printing
  •  Auto cutting (full/partial)
  •  Multiple sensors detection
  •  Original printer mechanism CAPD347
  •  High speed 200mm/s
  •  Full/partial cutting method (by adjustable)
  •  Paper jam detection
  •  Bezel LED indication
  •  Interface diversification
  •  Dragging paper detection
  •  Blackmark detection
  •  Print label sticker
  •  Multiple barcodes support

Description:


MS-D347-BE is small size 3 inch thermal printer with "paper jam prevention" design. it belongs to barcode label printers also.


Specification:


Mechanism:

CAPD347

Printing method

Thermal dot line printing

Dot pitch

8 dot/mm

Dots/line

576 dots/line

Paper width

80 mm

Printing width

72 mm

Paper thickness

54~78 um

Roll diameter

Max 90 mm ( external roll support)

Printing speed

200 mm/s

Paper feed direction

180° horizontal

Sensors

Paper end

Photo interrupter

Paper press shaft

Mechanical switch

Head temperature

Thermistor

Cutting type

Full/partial ( by adjustable)

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

4.75~5.25 V

Motor

21.6~26.4 V

Dimension  (L*W*H)

227.5*127.8*131.45 mm

Weight

 Approx 1.92 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work humidity

20~85% RH

 Work temperature

-10 ℃~50℃

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH



Controlling board:



power supply

DC 24V/2.5A

Interface

RS-232 /USB/Parallel

Command set

ESC/POS

Firmware location

512KB Flash memory

Barcode

supported

SRAM

64KB (extra)

Buffer

32 KB

System

Windows/Android/Linux OS

Driver

Parallel/USB driver

Accessories:

Sensors

paper near end sensor;

paper jam sensor;

dragging paper sensor;

Paper holding unit;

Paper bezel(paper guide mouth)

Power supply unit

Interface connector;

Cable



Application:


parking system; payment kiosk; ticket vendor; Self-service terminal; coupon machine; ATM; queuing management system; lottery machine; industrial heavy duty printer; Tax and bill printing and more



Competitive Advantage:

  • Compatible with ESC/POS commands set
  • Pass CE and ROHS certification
  • Wide range working temperature
  • Customization offer
  • Prompt delivery
  • Product performance
  • Small order accepted
  • Buyer label offer
  • Brand-name printer parts



Small ESC / POS Lan Thermal Printer Module for Multimedia Kiosk CAPD347Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
