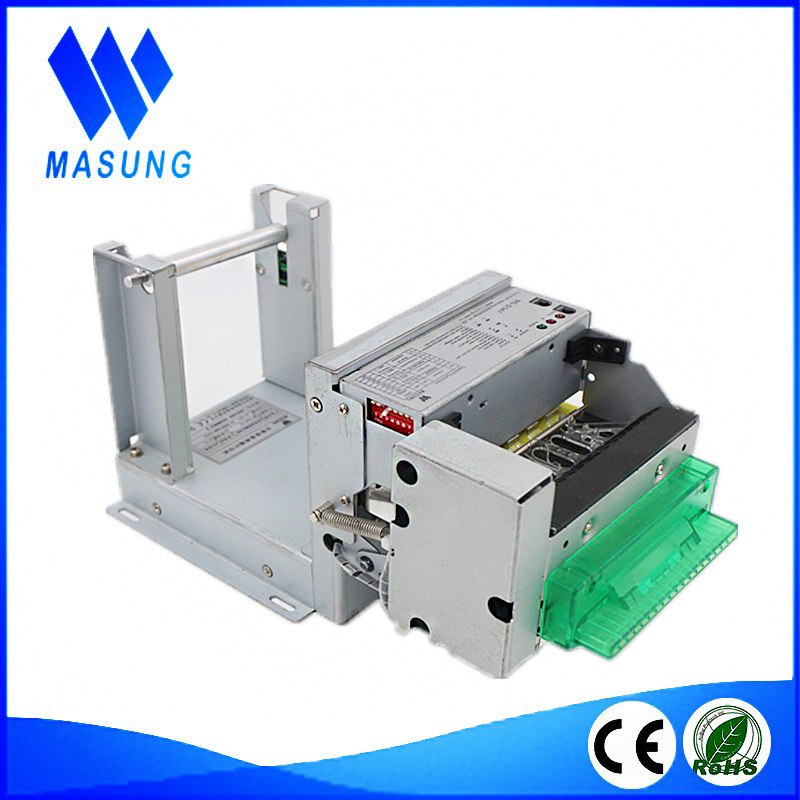

Presenter 3inch Barcode Label Printers With Parallel USB Driver

Product Categories

Shenzhen Masung Technology Co. Ltd

Contact Now

Name: Presenter 3inch Barcode Label Printers With Parallel USB Driver
Brand: MASUNG
Price: 1 USD

Brand Name : MASUNG

Model Number : MS-D347-TLP

Certification : CE/RoHs

Place of Origin : China

MOQ : 1

Price : 1-200USD/Pieces

Payment Terms : T/T

Supply Ability : 5000

Delivery Time : 5-15days

Packaging Details : Carton/foam material

Interface : RS-232 +USB/Parallel

power supply : DC 24V/3A

Command set : ESC/POS

Driver : Parallel/USB driver

Paper loading : Easy loading

Printing speed : 200 mm/s

Contact Now

Presenter 3inch Barcode Label Printers With Parallel USB Driver

Features:

Specification:

mechanism:			CAPD347
Printing method			Thermal dot line
Dots/line			576 dots/line
Dot pitch			8 dot/mm
Paper width			80 mm
Printing width			72 mm
Paper thickness			54~91 um
Printing speed			200 mm/s
Paper loading			Auto loading
Sensors	Head temperature		Thermistor
	Paper press shaft		Mechanical switch
	Paper end		Photo interrupter
Paper loading			Easy loading
Font size			ASCII:917;1224; Chinese: 24*24
Dimension (LWH)			186.9121.5112.2 mm
Weight			Approx 1.92 kg
Reliability			Cutter: over 7,000,000 cuts Thermal head: over 100 km
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage temperature	-25℃~70℃
		Storage humidity	10~90% RH
Interface			RS-232 +USB/Parallel
power supply			DC 24V/3A
Command set			ESC/POS
Barcode			supported
Driver			Parallel/USB driver
System			WindowsXP/Win7(32bits or 64 bits)/ Win8/Android/Linux OS
Accessories:			Sensors	paper near end sensor;
				paper jam sensor;
				dragging paper sensor;
			Paper holding unit
			Roll spindle
			Paper bezel (with LED)
			Presenter unit
			Interface connector
			Power supply unit
			Cable

Printer series:

Panel mount type: MS-D347

Small roll holder type: MS-D347-BE

Big roll holder type: MS-D347-TL/TH/V

With presenter unit type: MS-D347-TLP/THP

Application:

Self-service terminal; ATM; CDM; parking system; payment kiosk; coupon machine; automatic call

distributor; ticket vendor; inquiry machine; multimedia displayer, gas pumps station and more

Competitive advantages:

Presenter 3inch Barcode Label Printers With Parallel USB Driver
