200 Mm / S Ticket Printer Mechanism , Thermal Receipt Printer With Dragging Paper Sensor

Name: 200 Mm S Ticket Printer Mechanism Thermal Receipt Printer With Dragging Paper Sensor
Brand: MASUNG
Price: 1 USD

Buy cheap 200 Mm / S Ticket Printer Mechanism , Thermal Receipt Printer With Dragging Paper Sensor product

Brand Name : MASUNG

Model Number : MS-D347-BE

Certification : CE$Rohs

Place of Origin : China

MOQ : 1

Price : USD1~200/piece

Payment Terms : T/T/Paypal/Western union

Supply Ability : 2,000 units/monthly

Delivery Time : 5~8 days

Packaging Details : cartons and foam materials

Type : kiosk thermal printer

mechanism： : CAPD347

Printing method : Thermal dot line printing

Paper width : 80 mm

Printing width : 72 mm

Paper thickness : 54~78 um

Printing speed : 200 mm/s

Contact Now

200 mm/s Printing speed Ticket Printer Mechanism Dragging Paper Sensor Support

Features:
ROMO name printer mechanism
A simple internal structure
High speed printing speed, efficient and fast
Various modes can be adjusted freely, convenient for your self-installation and flexible to meet the needs of multiple devices.
Multiple optional interface designs, customized services.
Multiple sensors, including the man block paper sensor, prevent external drag sensor, in your device paper is about to be used to death, also provide relevant sensor reminder.
Support mainstream operating system Windows xp/Windows 7 / do /Android/Linux operating system

Specification:

mechanism:			CAPD347
Printing method			Thermal dot line printing
Dots/line			576 dots/line
Dot pitch			8 dot/mm
Paper width			80 mm
Printing width			72 mm
Paper thickness			54~78 um
Printing speed			200 mm/s
Paper feed direction			180° horizontal
Sensors	Head temperature		Thermistor
	Paper press shaft		Mechanical switch
	Paper end		Photo interrupter
Paper loading			auto loading
Font size			ASCII:917;1224; Chinese: 24*24
Power supply		Logic circuit	4.75~5.25 V
		Motor	21.6~26.4 V
Dimension (LWH)			119.4596.1380.60mm
Weight			Approx 1.92 kg
Reliability			Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage temperature	-25℃~70℃
		Storage temperature	10~90% RH

Interface	RS-232 /USB/Parallel
power supply	DC 24V/2.5A
Command set	ESC/POS
Barcode	supported
Firmware location	512KB Flash memory
Buffer	32 KB
SRAM	64KB (extra)
Driver	Parallel/USB driver
System	WindowsXP/Win7(32bits or 64 bits)/ Win8/Android OS

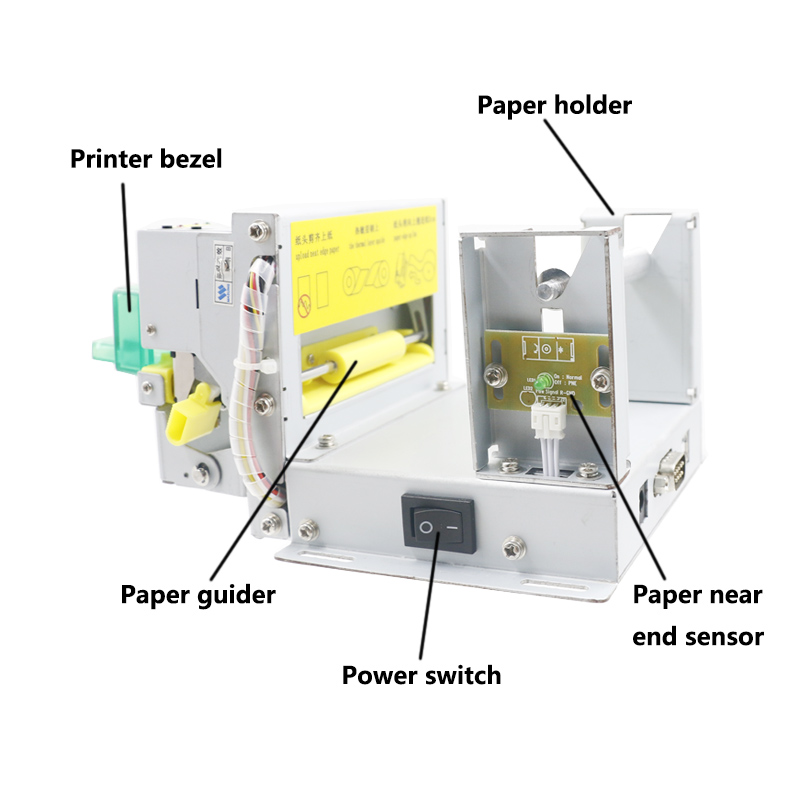

Accessories:	Sensors	paper near end sensor;
		paper jam sensor;
		dragging paper sensor;
	Paper holding unit
	Paper guide mouth
	Interface connector
	Power supply unit
	Cable

Application:

Self-service terminal; ATM; parking lot machine; payment kiosk; coupon machine; ticket vendor;

information kiosk; multimedia kiosk; queue management system and more.
