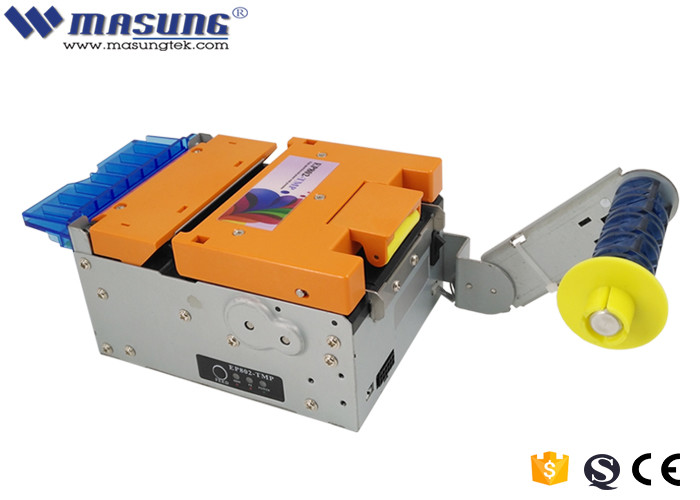

80mm Paper Persenter Unit Kiosk Thermal Ticket Printer For Lottery Device

  • 1
  • 2

Brand Name : MASUNG

Model Number : EP802-TMP

Certification : CE/ROHS

Place of Origin : CHIAN

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 2500 units/monthly

Packaging Details : carton

Model : EP802-TMP

Printing method : Thermal dot line

Dots : 640dots

Speed : 250mm/s (max)

Printing width : 80mm (max)

Paper width : 60/80/82.5 mm

Paper thickness : 0.06~0.2 mm

Paper loading : easy loading(horizontal 180)

Contact Now

80mm Compact Structure Multiple Interfaces Kiosk Thermal Printer



Features:

Brand name thermal head & auto cutter

Ultra Highly printing speed Max 250 mm/s

Variable length ticket presenter

Ticket retracting capability

Smart LED bezel

Sturdy adjustable paper roll bracket (horizontal & vertical mounting)

Wide range paper thickness: from 0.06 ~ 0.2 mm



Specification:

Module EP802-TMP
Control board EP802_3
Thermal printer head Brand name: ROHM
Auto cutter Brand name: OYANE





Printing



 Printing method Thermal dot line
Dots 640dots
Speed 250mm/s (max)
Printing width 80mm (max)
Paper width 60/80/82.5 mm
Paper thickness 0.06~0.2 mm
Paper loading Easy loading ( horizontal 180°)
Cutting method Full
Print head life 100KM
Printing format inverse,underline,italic,bold

Cutter life



 60μm paper 1,000,000 cuts
200μm paper 500,000 cuts
  Baud rate 9600,19200,38400,115200
Font ASCII 9*17,12*24
Chinese 24*24dots

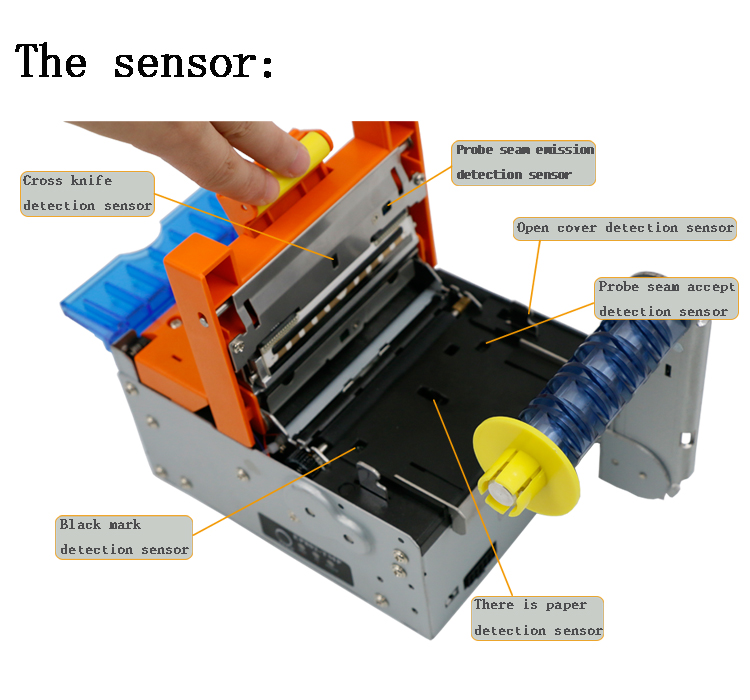

Detection TPH temperature Temperature sensor
Mechanism open detection Micro switch
Paper presence detection Mechanical sensor
Ticket out detection
Paper near end detection Photo-interrupter
Black mark detection
Paper cutting detection
Paper retracting detection
Conditions Power supply DC24±10% V
Load current

1.5A continuous

61mA Standby

3.2 A Peak
Interfaces RS232,USB
Paper Paper type Thermal paper roll
Recommended paper type

KANZAN KF50

KP460

MITSUBISHIPG5075

TL4000
Environment operating temperature -10~60℃(no condensation)
operating humidity 20%~80%RH(40℃,85%RH)
Storage temperature -20~70℃(no condensation)
Storage humidity 10%~90%RH(50℃,90%RH)
Dimension Paper holder 45° upward ( 150mm paper roll) L*W*H=328*122.3*163 mm
Paper holder horizontal (150 mm paper roll) L*W*H=355*122.3*288 mm
Paper roll vertical (150 mm paper roll) L*W*H=196*122.3*288 mm
Weight Approx 1.49kg(without paper roll )



Application:

Sports betting terminal; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor, airport boarding check printer, ATB tags printer and more
