58mm Panel Mount Kiosk Ticket Printers Bank Terminal Multiple 384 dots

Product Categories
Shenzhen Masung Technology Co. Ltd
Contact Now

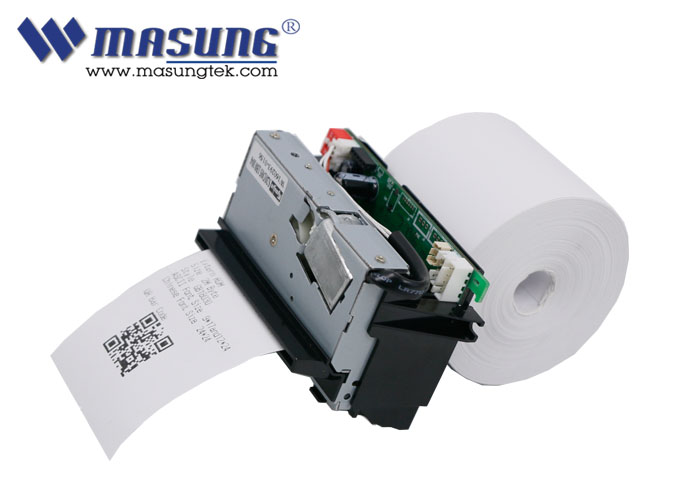

58mm Panel Mount Kiosk Ticket Printers Bank Terminal Multiple 384 dots

Brand Name : MASUNG

Model Number : MS-N58V

Certification : CE/ROHS

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 2000 set per month

Packaging Details : carton and foam materials

Model number : MS-N58V

Printing method : Thermal dot line printing

Dot pitch : 0.125mm

dots : 384 dots

Print width : 48mm

Paper width : 58mm

Maximum print speed（mm/s）max : 80mm

Color : Black

Contact Now

58mm Panel Mount Printers Kiosk Ticket Printer Bank Terminal Multiple



Summary



The specification Manual is used for the MS-N58V print module. This manual adapt to the voltage range between 12V to 24V, GB18030 Simplified Chinese(24*24dots),If there are any requirements, please consult us in advance.



Features



►Portable type

►panel mount structure

►Long standby time

►logo printing

►Paper jam prevention

►Linux/Android/Windows support

specification:

items Specifications





Print

 Printing method Thermal dot line printing
Total dots per line(dot/lines) 384dots
Printable dots per line(dot/lines) 384dots
Dot pitch 0.125mm(8dots/mm)
Maximum print speed(mm/s)max 80
Print width(mm) 48
Paper width(mm) 58mm
Paper feeding method Slide feeding
Type of paper cutting Full cut and Partial cut (1.5±0.5mm tab left at the center)
Detection Thermal head temperature detection Thermistor
Platen position detection mechanical switch
Out-of-paper detection Reflection type photo interrupter
Condition Operating voltage range(Vp) 12~24V
Current consumption Approximately 0.87A
Autocutter current consumption 1.0 A max
Temperature Operating temperature 0—50°C(Non condensing)
Storage temperature -20—60°C(Non condensing)
Life span Activation pulse resistance 100 million pulses or more
Abrasion resistance(km) 50km or more
Appearance Dimensions(including mounting part) W98mm*D81mm*H60mm
Mass Approximately 230g





58mm Panel Mount Kiosk Ticket Printers Bank Terminal Multiple 384 dots



Thank you for your coming. Please feel free to contact us if you have any questions or needs. We will serve you sincerely!
